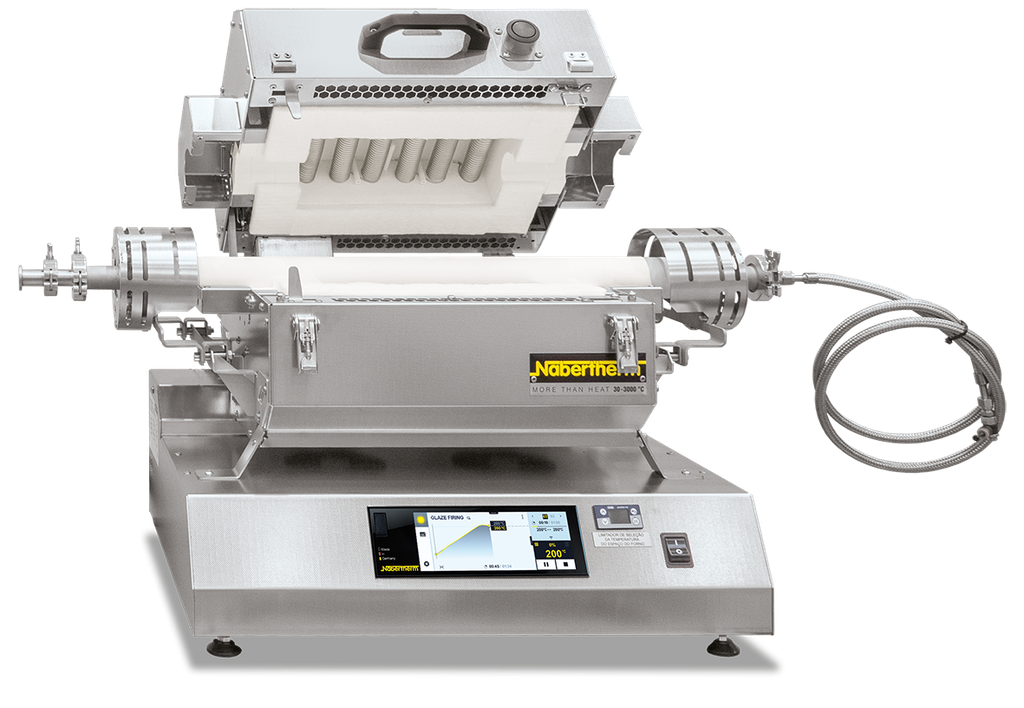

The furnaces can be used horizontally or
vertically along with the corresponding stands. The split design
makes it easy to change the working tubes. By adding
various gas supply packages, one can work in closed
gas atmospheres, with gases, or in a vacuum. In addition to
standard controls, modern process PLC control is offered.
Including two fiber plugs is standard.
• Simple zone design
• Max. temp. 1100°C or 1300°C
• Ceramic working tube C 530
• Heating elements in quartz glass tubes provide free radiation
• Tubes up to Ø170 mm
Accessories: Stand for vertically placed furnace
Control unit, Touch screen: C550
• 10 programs/20 ramps
• Up to 2 adjustable functions
• Calibration (10 base points)
• Real-time clock
• USB interface
