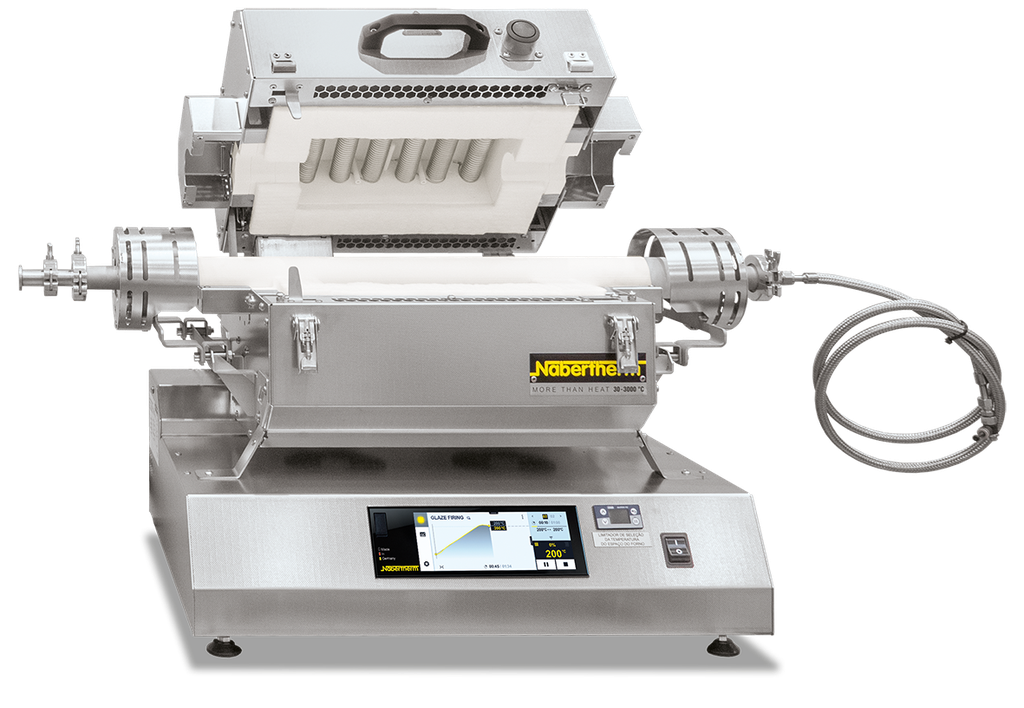

The tube furnaces can be used for horizontal operation and

with a vertical tripod also for vertical operation. The split-type

design makes it easy to change the working tube. By adding

different gas supply packages, you can work in a protective

gas atmosphere, with gases or in a vacuum. In addition

to the convenient standard controllers, modern PLC controllers

can also be used to control the process.

• Single-zoned design

• Max temp. 1100°C el. 1300°C

• Ceramic working tube C 530

including two fiber plugs

• Heating elements on support tubes provide free radiation

• For tubes up to 170 mm in diameter

Accessories: Tripod for vertical operation

Controller C550

• 10 programs/20 steps

• Up to 2 settable functions

• Calibration (10 base points)

• Touchpanel

• Real-time clock

• USB interface
