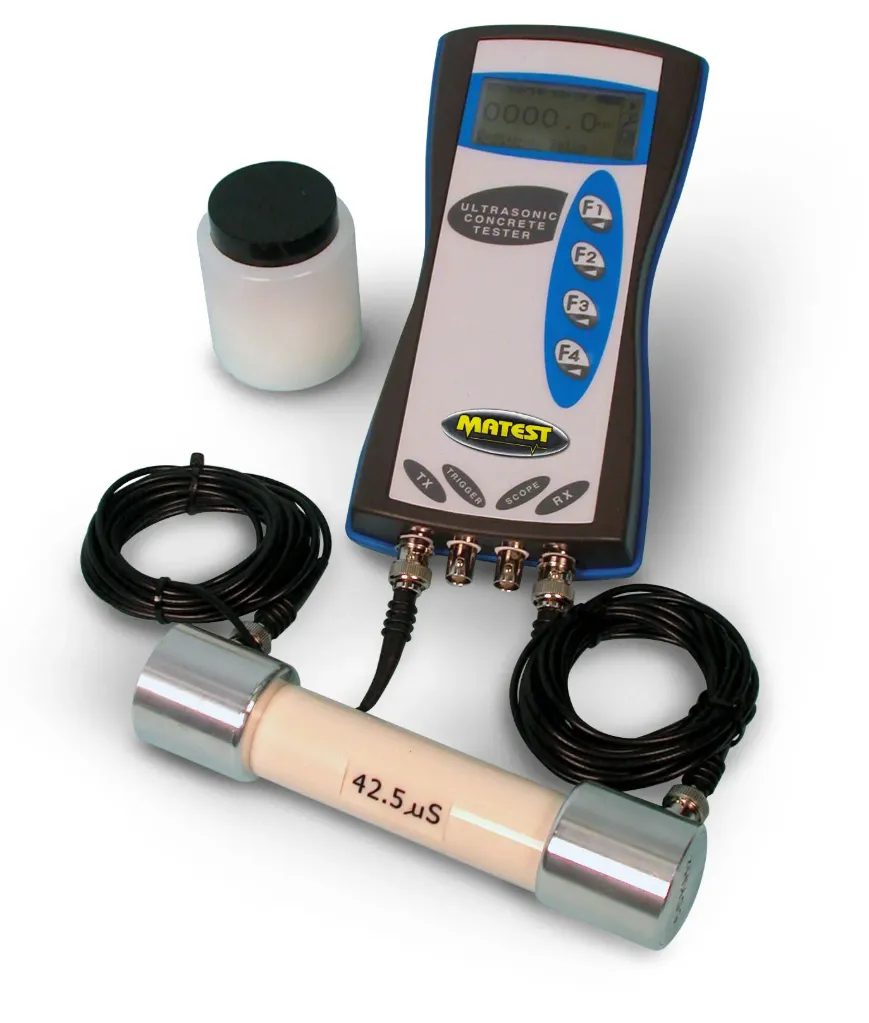

The Ultrasonic Pulse Velocity Tester provides detailed data on concrete homogeneity by sending sound pulses through the material and measuring the travel time from the transmitter probe to the receiver probe. It can also give indicative information about concrete strength.
- Measuring range: 0–3000 µs, resolution ±0.1 µs
- Adjustable ultrasonic pulse amplitude: 250–1000 V
- Time measurement for pulse propagation through tested material
- Single or continuous acquisition mode with automatic or manual saving
- Zero calibration with depuration of pulse time through probes
- Battery life: 6–8 hours
- Data acquisition, processing, and storage up to 30,000 samples
- Mini USB interface for PC connection
- Two outlets for oscilloscope connection
- Multilingual support: English, French, German, Spanish, Italian
- User-friendly system for easy operation
Standard supply includes:
- Instrument in basic configuration in a practical palmer container
- Two 55 kHz probes with connection cables
- Rechargeable NiMh battery pack 4.8V > 2000 mA/h with low battery alarm
- External feeder 230V and 12V 500 mA battery charger
Case dimensions: 400x340x110mm
Weight: 2 kg approx.
