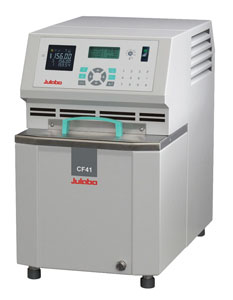

Julabo CF41 recirculator, 5,5 liter, -40 - 200°C

Julabo CF41 recirculator, 5,5 liter, -40 - 200°C

[4968209] Julabo CF41 recirculator, 5,5 liter, -40 - 200°C

HighTech line CF31, CF41

Generally as Economy line but  additionally with:

- Bright VFD display and interactive LCD dialogue display

- Highly precise ICC cascade temperature control

- RS232/RS485 interface for PC connection

- Electronically adjustable pump output

- External Pt100 sensor connection

- Integrated programmer with 6x60 program steps

- Early warning system for low liquid level

- 3-point calibration

- TCF Temperature Control Features



Type CF41

Temp. range -40 to 200 °C

Temp. stability 0.02 ± °C

Cooling capacity kW at 20/0/-20°C 0.47/0.4/0.28

Pump cap. 22-26 / 0.4-0.7 L/min / bar

Suction 0.2-0.4 bar


Log in to see price
Add to wishlist
Contact Us
Documents
JULABO-CF41_DAN.pdf

Specifications

Master Data
Group Bade og termostater
Subgroup Refrigerated baths
Item Type Apparatus
Manufacturer Brand Julabo
UNSPSC Category 41103701 Circulating baths
Sales Unit of Measure Units
Qty per Salesunit 1.0 Units
Any questions, please contact Bo Deckers Skibild, bds@buch-holm.dk, +45 44 54 00 33
Specifications
Cooling capacity @20°C [Watt] 470
Pump capacity [L/min.] 22 - 26
Pump capacity [bar] 0,35
Heating capacity [W] 2000
Volume intervalL (L) 1_1-5L
Max.Temperature Interval [°C] 3_151 op til 200°C
Max. Temperature 200.0
Min. Temperature -40.0
Model Julabo Cryo-Compact
Resolution [°C] 0,1
Temp. stability [°C] ±0,02
Temperature [°C] -40 - 200
Bath volumen [L] 5.5
