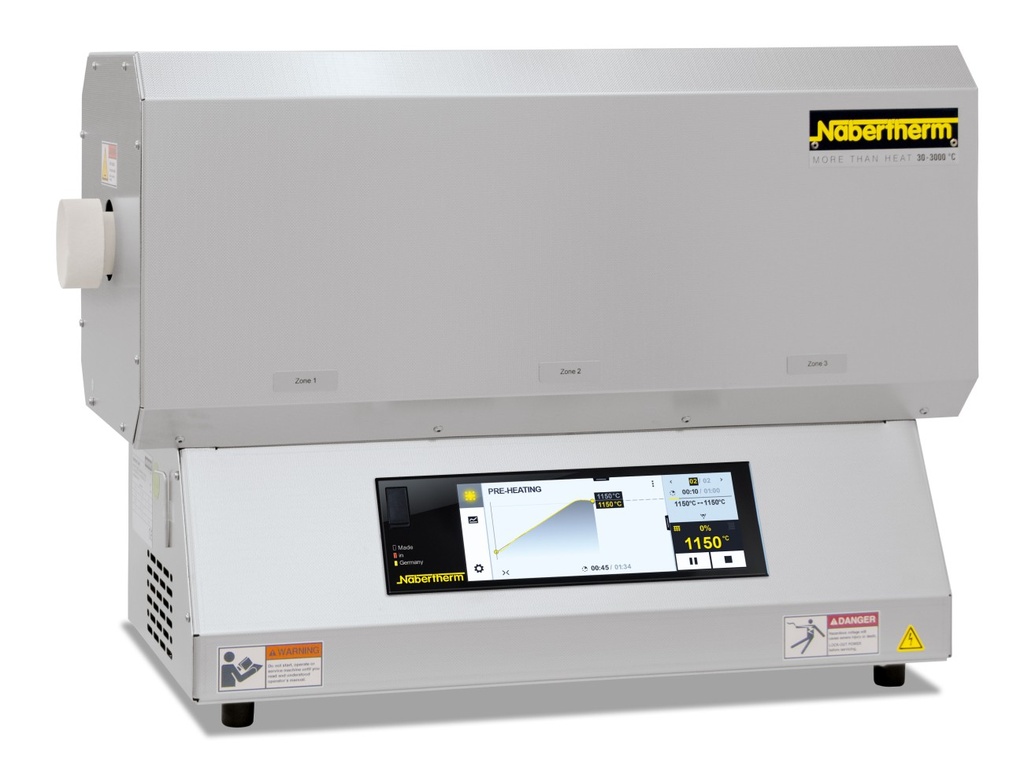

The tube furnace RD 30/200/11 impresses with its very good price-performance ratio, particularly compact external dimensions and its low weight. This all-rounder is equipped with a working tube, which also serves as a carrier for the heating wires. The working tube therefore represents a component of the furnace heating, with the advantage that the tube furnace achieves very high heating speeds. The oven is designed for horizontal use up to 1100°C.

Tmax 1100°C

Double-walled housing made of structural stainless steel sheet for low outside temperatures and high stability

Exclusive use of insulation materials without classification according to Regulation (EC) No. 1272/2008 (CLP)

Pipe inner diameter of 30 mm, heated length of 200 mm

Ceramic work tube C 530 including two fiber plugs for operation in air

Thermocouple type K (1100°C)

Quiet operation of the heater with solid-state relays

Heating wires wrapped directly around the working tube, resulting in very quick heating

Intended use within the scope of the operating instructions

Controller R7
