RECORDER LORA® SPY UNI

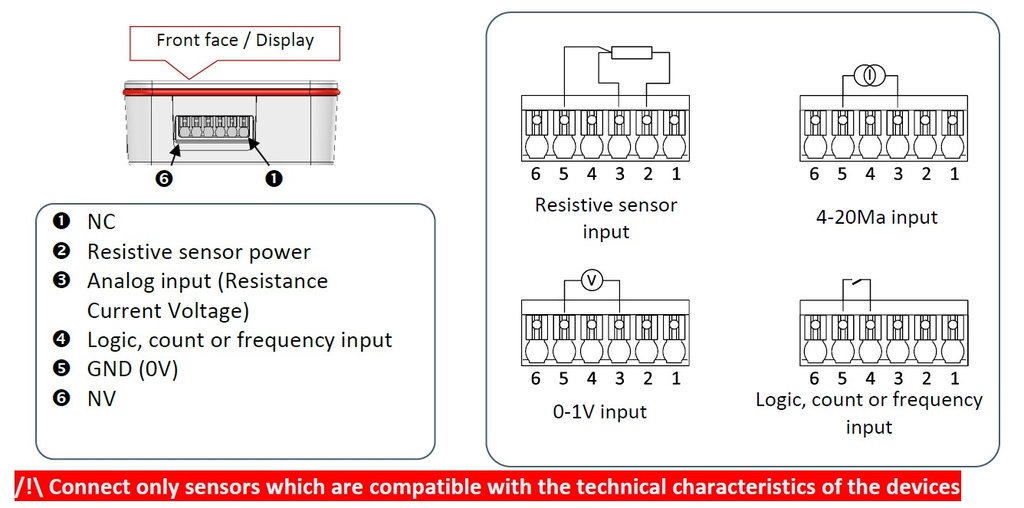

The Universal LoRa® SPY has a quick connector facilitating the installation of different types of sensors. The
sensors can be disconnected from the recorder for their replacement or for changing the recorder itself.

Input type:

Pt100:
Measurement range : -200°C to +300°C
Resolution: 0,01°C
Accuracy(not including probe) : ±0,1°C from -20°C to +60°C, ±0.2°C from -100°C to -20°C and from +60°C to +200°C, ±0.5°C out of this range

Current input 0-20 or 4-20 mA:
Resolution: 0,001 mA
Accuracy (control unit only): ±0,01 mA

Frequency input:
Measurement range : 0 to 500 Hz
Resolution: 0,5 Hz
Accuracy(control unit only): ± 1 Hz

Count input:
Measurement range: 0 to 32767
Resolution: 1

Binary input:
Dry contact or 0 - 3,3 V max.

Communication frequency : 868 MHz
Memory : 10 000 data points
Radio range : Up to 16 km open field range
Interface : Status LED lights, On/Off touch sensitive button, LCD display
Dimensions : 87 x 64 x 25 mm
Weight : 100 g
Power supply : Replaceable Lithium 3,6v battery
Battery lifetime : 2 to 4 years depending on use
