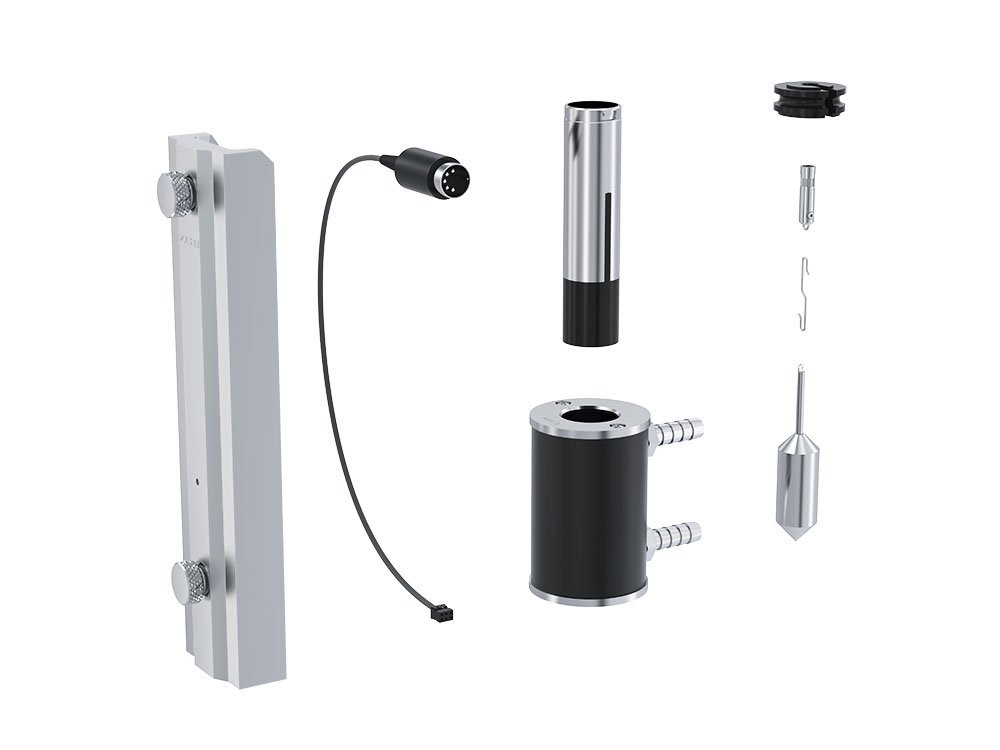

Adapter to measure the viscosity of especially valuable and expensive samples. A double jacket with temperature sensor to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate is included.

Further spindles and chambers for different volumes can be purchased separately.

Specifications
Sample volume: 6.7 ml
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 1.5 mPa.s
Max. FSR match ROTAVISC lo-vi 30000 mPa.s
Min. FSR match ROTAVISC me-vi 16 mPa.s
Max. FSR match ROTAVISC me-vi 320000 mPa.s
Min. FSR match ROTAVISC hi-vi I 32 mPa.s
Max. FSR match ROTAVISC hi-vi I 640000 mPa.s
Min. FSR match ROTAVISC hi-vi II 128 mPa.s
Max. FSR match ROTAVISC hi-vi II 2600000 mPa.s
